DOBOT Nova 5 | Enhanced with AI sensing technologies

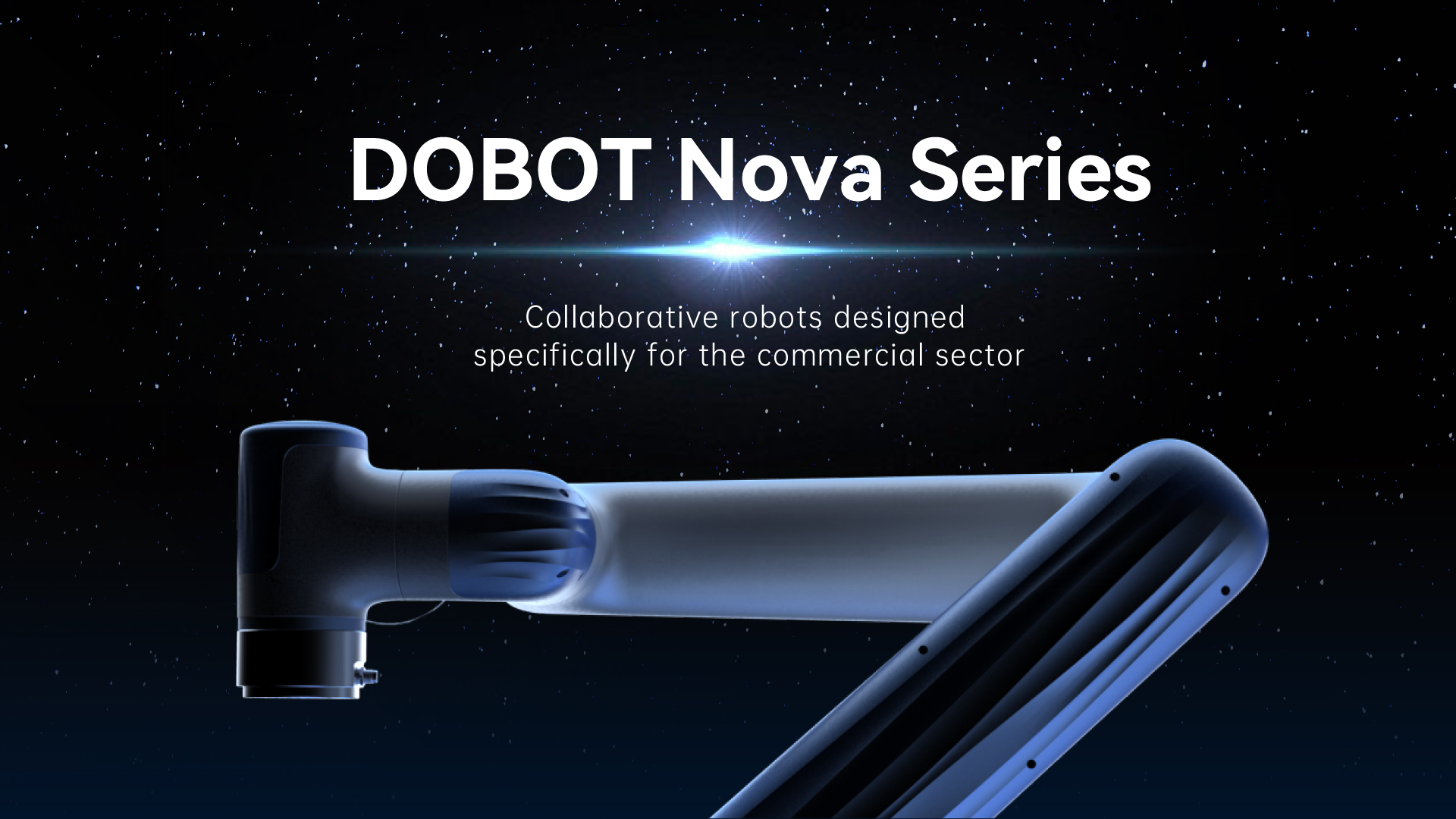

Nova 5 Collaborative Robot

Nova 5 has an 850 mm working radius to easily reach massage spots such as neck, back and waist. Dobot’s proprietary precision pressure control algorithm offers unparalleled experience.

Related Cases

Learn more

Adoption Across Industries

Healthcare

New Retail

Education

Nova 5
Weight		14 kg (30.9 lbs)
Maximum Payload		5 kg (11 lbs)
Working Radius		850 mm (33.5 in)
Maximum Speed of TCP		2 m/s (78.7 in/s)
Repeatability		±0.05 mm

Questions? We're here to help!

Our experts are ready to assist you in planning your path to automation success.
They can provide answers to all your Dobot-related queries, including:

√ Our Information on our product portfolio and pricing

√ Tailored solutions that suit your business needs

√ Distributor partnership policy and more…

Simply fill out the form at right or email us at sales@dobot-robots.com.

*I have read and agree to the <User Registration Agreement> and <Privacy Statement> of Dobot Robotics

Nova 5
Weight		14 kg (30.9 lbs)
Maximum Payload		5 kg (11 lbs)
Working Radius		850 mm (33.5 in)
Maximum Speed of TCP		2 m/s (78.7 in/s)
Repeatability		±0.05 mm
Range of Motion	J1	± 360°
	J2	± 180°
	J3	± 160°
	J4	± 360°
	J5	± 360°
	J6	± 360°
Maximum Joint Speed	J1/J2/J3	100 ° /s
Maximum Joint Speed	J4/J5/J6	100 ° /s
End IO	DI	2 inputs
	DO	2 output
	RS485	Supported
IP Rating		IP54
Noise		70 dB(A)
Temperature Range		0° to 50° C
Installation Orientation		Any angle
Power Consumption	Typical	230W
Power Consumption	Maximum	770W
Cable Length from Robot to Controller		3 m (118.1 in)
Materials		Aluminum alloy, acrylonitrile butadiene Styrene plastic

Controller
Dimensions		200 mm x 120 mm x 55 mm ( 7.9 in x 4.7 in x 2.2 in)
Weight		1.3 kg (2.9 lbs)
Input Power		30~60V DC
IO Power		24V, Max 2A, Max 0.5A for each channel
IO Interface	DI	8 inputs（NPN or PNP）
	DO	8 outputs（NPN or PNP）
	AI	2 inputs, voltage mode, 0~10V
	AO	2 outputs, voltage mode, 0~10V
Remote Power On/Off		Supported
Communication Interface	Network Interface	2, for TCP/IP and Modbus TCP communication
	USB	2, for connecting USB wireless module
	485 Interface	1, for RS485 and Modbus RTU communication
Environment	Temperature	0° to 50° C
	Humidity	≤95%, non-condensation
IP Rating		IP20
Cooling Mode		Passive heat dissipation
Teaching Mode		PC、APP（Android、iOS）

User Manual

DobotStudio Pro User Guide (CR&Nova) · Apr 21, 2023

For the industrial robots (CR & Nova series), the user manual of PC software.

Dobot CRStudio APP User Guide (CR&Nova) · Dec 9, 2022

For the industrial robots (CR & Nova series), the user manual of Android & iOS APP.

Dobot Nova Series User Guide · Dec 12, 2022

This Document describes the functions, technical specifications, installation guide and maintenance of DOBOT Nova Series robot, making it easy for users to fully understand and use it.

Virtual Controller Application

We provide a free trial application for the robot cloud virtual controller. Fill in the following information and we will issue you a 12-hour license.

Contact Information

Application Product

* I agree that Dobot processing my data in accordance with its privacy policy.

Dobot is committed to protecting and respecting your privacy. We prioritize the security of your information and employ industry-standard security measures to protect the user information you provide, preventing unauthorized access, disclosure, use, modification, damage, or loss of data.

Back To Home Page

DOBOT Nova 5 | Enhanced with AI sensing technologies

Nova 5 Collaborative Robot

Nova 5

Nova 5

* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
