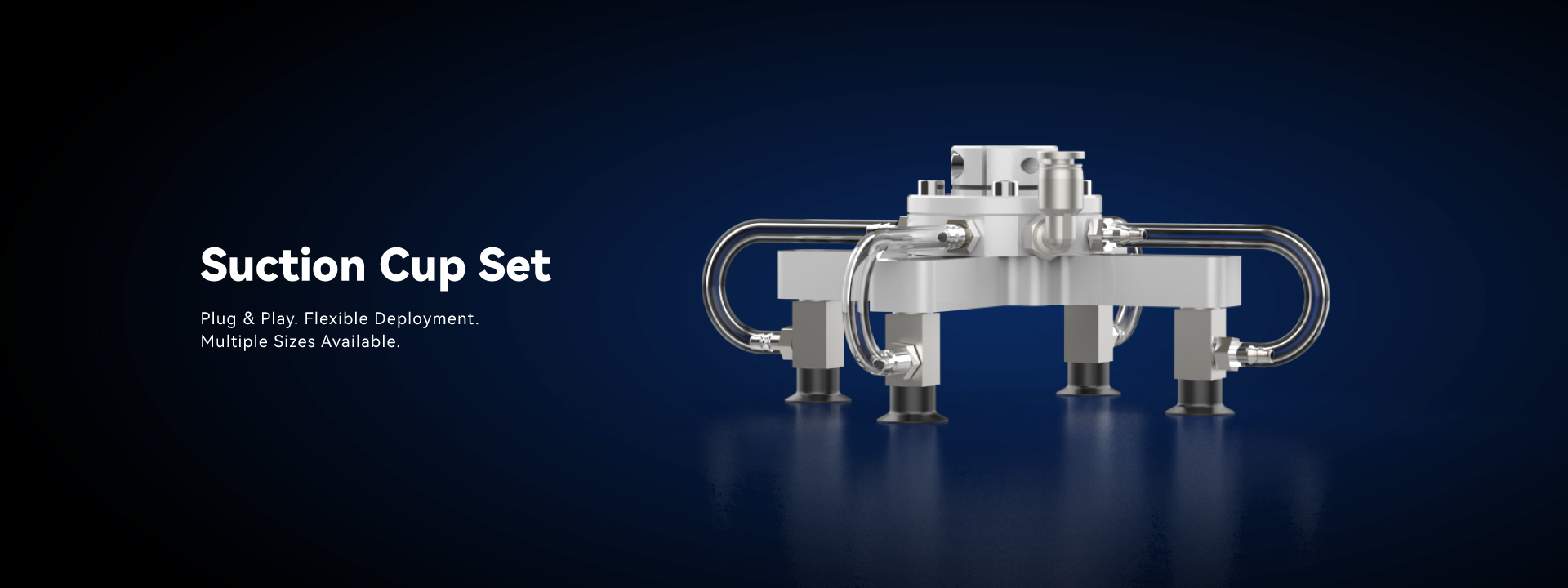

The DOBOT Suction Cup Kit offers two variations: double head suction cup and quad head suction cup. It is easy to use and flexible to deploy, and can be used in conjunction with mobile robots to transport objects, as well as loading and unloading operations, without causing any damage to the workpiece.
Product Highlights
Compact. Plug-and-play.
The suction cup spacing is adjustable, and the double-headed and four-headed suction cups can be flexibly selected to meet the suction requirements of objects of different sizes.
The suction cups are interchangeable, offering various sizes such as φ4 mm, φ8 mm, φ13 mm, φ16 mm to meet different suction requirements.
Application
Suitable for various industries such as consumer electronics, food and beverage, and pharmaceuticals for handling, loading and unloading of objects with flat surfaces.
Specifications
Suction Cup Kit
Module
Double head suction cup
Quad head suction cup
Size of Air Hose Connector
4 mm
Suction Cup Diameter
4 mm，8 mm，13 mm，16 mm
Weight
120 g
160 g
Dimensions
100 mm × 30 mm
100 mm × 100 mm
Join Ecosystem
Become a Dobot+ member to accelerate automation transformation in the world. Together we can maximize the impact of our products.
* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
