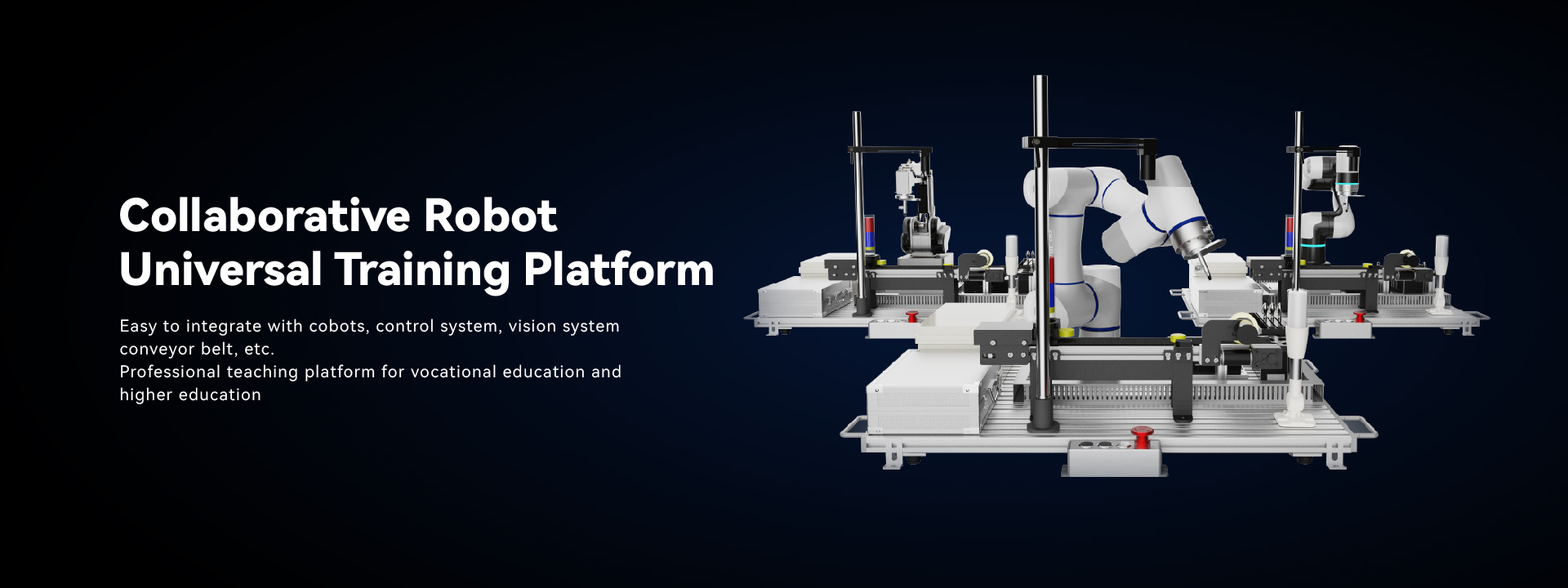

Collaborative Robot Universal Training Platform

The MG400 Training System is an educational solution designed for vocational and higher education institutions to help students understand the functionality of standard automation systems and improve training effectiveness.

Product Highlights

Multi-purpose Teaching and Training: Enables technicians to better understand the performance and functionality of the MG400, as well as the possible automation tasks that can be achieved, improving training effectiveness.

Compact and Convenient for Demonstrations: With a compact design and easy portability, distributors can demonstrate actual applications of the MG400 to customers on site, fully showcasing its performance and functionality.

Abundant Support Resources: As an educational solution for higher education institutions and vocational schools, training manuals will be made available for 10 different training modes.

Application

This system is suitable for teaching and training for intelligent manufacturing, automation, and related majors in vocational schools and higher education institutions.

Specifications

Specifications
Model	DT-BE-R-02-M
Power Input	100 to 240V AC, 50/60Hz
Output Voltage	48V
Total Power	500W
Weight of System Components	40 kg
Dimensions	960 mm × 600 mm × 706 mm
Total Weight with Wooden Packaging	53 kg
Wooden Packaging Dimensions	1020 mm × 700 mm × 405 mm

Feeding and Transportation Modules
Transportation Module	Dimensions	543 mm × 55 mm
	Materials	Supporting structure: Aluminum, Conveyor belt: PVC
	Rated Speed	6 m/min
	Operation Mode	Adjustable-speed DC motor, 24V, 1.2A
	Encoder	Incremental encoder, resolution: 1000 P/R, diameter: φ40 mm
	Control Method	I/O drive, manual speed regulation
	Sensor	Motor sensor: 5882-50ZY
Feeding Module	Materials	PMMA
	Drive Mode	Step screw drive, 2.45V, 0.5A, step angle: 1.8°
	Control Method	I/O drive, manual speed regulation
	Sensor	Photoelectric sensor, detection distance: 5 to 100 mm

Other Modules
Storage Tray	Capacity	12
Storage Tray	Dimensions	180 mm × 120 mm × 140 mm
Storage Tray Slot	Capacity	4
Storage Tray Slot	Dimensions	190 mm × 715 mm × 120 mm

MG400
Dimensions	100 to 240V AC, 50/60Hz
Rated Voltage	48V
Rated Power	240W
Weight	8 kg
Base Dimensions	190 mm × 190 mm
Number Of Axes	4
Maximum Payload	750 g
Working Radius	440 mm
Repeatability	±0.05 mm
Communication Interface	TCP/IP, Modbus TCP

Air Pump Module
Power Consumption	20W
Noise	65dB
Dimensions	160 mm × 140 mm × 50 mm

Vision Module
Camera	Effective Pixels	5 Megapixels
	Image Type	Color
	Frame Rate / Resolution	31 FPS @ 2592 × 1944
	Interface	USB 3.0
	Camera Mount	C-Mount
	Dimensions	29 mm × 29 mm × 30 mm
	Weight	56 g
6 Megapixels, 12 mm prime lens	Focal Length	12 mm
	Maximum Image Size	1/1.8 inch (φ9 mm)
	Aperture	F2.8 to F16
	Control	Manual aperture and focus
	Interface	C-Mount
	Filler Thread	M27 × 0.5
	External Dimensions	φ29 × 35.36 mm
Light Source	Emitting Color	White
	Number of LEDs	48
	Illuminance	40,000 lx
	Wavelength	455 to 457.5 nm
	Working Distance	35 to 110 mm
	Size	Inner diameter: 40 mm, outer diameter: 70 mm, height: 25 mm
	Lens Outer Diameter	Max φ39 mm
	Weight	0.48 kg
