CR Series

CR Series

Safe and flexible 6-axis cobots

Get in touch

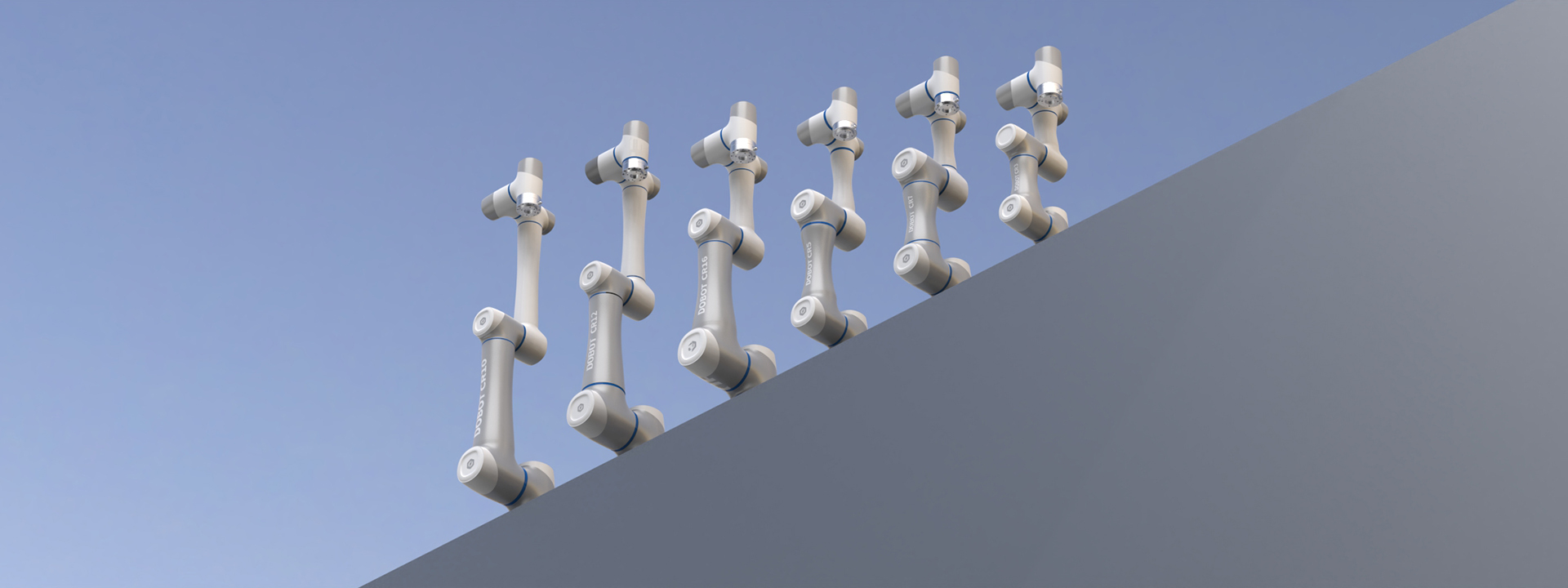

CR Series Collaborative Robots

The DOBOT CR Series consists of 6 payloads: 3 kg, 5 kg, 7 kg, 10 kg, 12 kg, and 16kg, with repeatability of ±0.02 mm. They are safe for human collaboration, easy to use, flexible and simple to deploy, making them ideal for a wide range of industries: automotive, consumer electronics, semiconductor, healthcare, chemical and new retail. The CR Series lowers labor cost while enhancing production efficiency.

CR Series

Please fill in the information below for further product information.

SafeSkin
Innovative Pre-collision
Sensing Technology

Dobot’s exclusive technology for safer operations.
Learn more
Innovative Pre-collision Sensing Technology
Innovative Pre-collision Sensing Technology

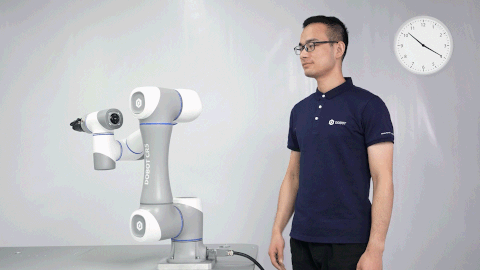

Easy to Learn. Fast to Deploy.

Easy to Learn.
Fast to Deploy.

Plug and play design allows a quick deployment using different accessories from our ecosystem. Program with graphical interface, scripting using smartphones, tablets and computers, or program directly with drag-to-teach. Complete installation in 20 minutes. Up and running in an hour.

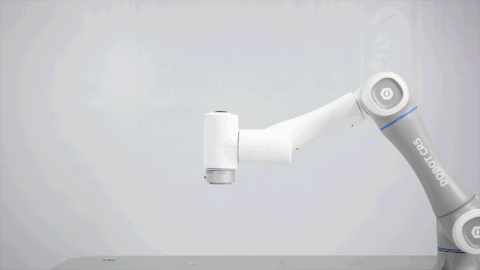

Safe for Efficient Collaboration.

Safe for Efficient
Collaboration.

The CR Series has 22 safety features built-in and is ISO 13849 and TS15066 certified. Equipped with sensors offering 5 adjustable levels of collision detection, it can adapt to a variety of application scenarios. The optional SafeSkin senses unexpected objects that come within 15 cm, actively enhances the safety and efficiency of the robot.

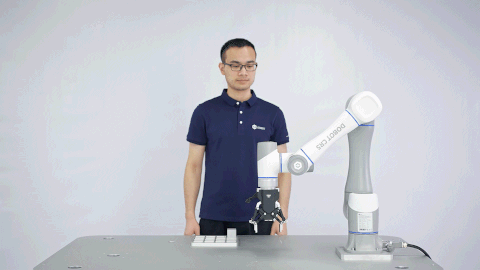

Infused with AI Technology.

Infused with
AI Technology.

All-perceptive AI control technology combines vision, force, voice controls into one. Trajectory tracking and portable learning algorithm make imitating human hand motions possible.

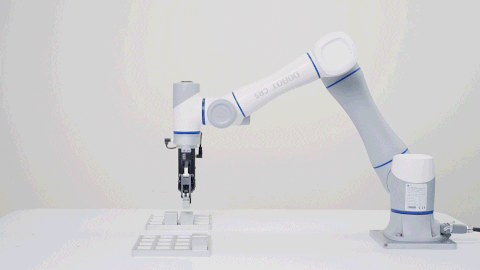

Advanced Algorithm for Higher Performance.

Advanced Algorithm for Higher Performance.

Industry-leading DH parameter compensation technology achieves ±0.02 mm repeatability. Vibration suppression and True Motion algorithms guarantee precision and stability during complex movements.

Open Ecosystem for Scalability.

Open Ecosystem for Scalability.

Various plug-and-play grippers, cameras, and sensors can be connected to multiple IO and communication interfaces on the robot. Secondary development is supported on 20+ development platforms. Task-specific software packages cover loading and unloading, assembly, screwdriving, polishing and other 50+ tasks that can be used across 8 major industries.

Adoption Across Industries

See how Dobot robots create competitive advantages for businesses.

CR Series

Model CR3 CR5 CR7 CR10 CR12 CR16
Weight 16.5 kg 25 kg 24.5 kg 40 kg 39.5 kg 40 kg
Maximum Payload 3 kg 5 kg 7 kg 10 kg 12 kg 16 kg
Working Radius 620 mm 900 mm 800 mm 1300 mm 1200 mm 1000 mm
Maximum Reach 795 mm 1096 mm 990 mm 1525 mm 1425 mm 1223 mm
Rated Voltage 48V DC
Maximum Speed of TCP 2 m/s 3 m/s 3 m/s 4 m/s 4 m/s 3 m/s

Questions? We're here to help!

Our experts are ready to assist you in planning your path to automation success.
They can provide answers to all your Dobot-related queries, including:
√ Our Information on our product portfolio and pricing
√ Tailored solutions that suit your business needs
√ Distributor partnership policy and more…
Simply fill out the form at right or email us at sales@dobot-robots.com.

CR Series

Model CR3 CR5 CR7 CR10 CR12 CR16
Weight 16.5 kg 25 kg 24.5 kg 40 kg 39.5 kg 40 kg
Maximum Payload 3 kg 5 kg 7 kg 10 kg 12 kg 16 kg
Working Radius 620 mm 900 mm 800 mm 1300 mm 1200 mm 1000 mm
Maximum Reach 795 mm 1096 mm 990 mm 1525 mm 1425 mm 1223 mm
Rated Voltage 48V DC
Maximum Speed of TCP 2 m/s 3 m/s 3 m/s 4 m/s 4 m/s 3 m/s
Maximum Linear Speed 2 m/s 2 m/s 2 m/s 2 m/s 2 m/s 2 m/s
Range of Motion J1 ±360°
J2 ±360°
J3 ±155° ±160° ±160° ±160° ±160° ±160°
J4 ±360°
J5 ±360°
J6 ±360°
Maximum Joint Speed J1/J2 180°/s 180°/s 180° /s 120°/s 120° /s 120°/s
J3/J4/J5/J6 180°/s
End-Effector I/O Interface DI/DO/AI 2
AO 0
Communication Interface Communication RS485
Controller I/O DI 16
DO/DI 16
AI/AO 2
ABZ Incremental Encoder 1
Repeatability ±0.02 mm ±0.02 mm ±0.02 mm ±0.03 mm ±0.03 mm ±0.03 mm
Communication TCP/IP, Modbus, Wi-Fi
IP Rating IP54, Control Box IP20
Temperature 0° ~ 45° C
Power Consumption 120W 150W 150W 350W 350W 350W
Materials Aluminum alloy, ABS plastic
  • User Manual

  • Control Software

  • 3D Model / Dimension Drawing

  • Secondary Development

* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
