Mini Conveyor Belt Kit

Mini Conveyor Belt Kit

Simplest Mini Production Line

Get in touch

DOBOT Conveyor Belt Kit: Stepping into a Production Line Simulation Universe

The Conveyor Kit for DOBOT Magician makes it possible to obtain a complete simulated production line. The powerful and programmable DOBOT Magician, combined with the adjustable speed, distance, and color sensor conveyor belt, is a perfect tool for creating a highly effective simulated production line or even applying it to existing factory application scenarios.

Mini Conveyor Belt Kit

Conveyor Belt as a Core Component

A mini conveyor belt is a core component for building an automation process with your robotic arm. It is adaptable to multiple educational needs, enabling you to train your skills in a production assembly line.

Photoelectric Switch Facilitates Object Detection

Detect whether there are objects in front of the photoelectric switch as it helps improve the quality and the speed of the object detection.

Color Sensor Detection on the Surface

An easy-to-use color sensor for you to categorize red, blue, and green objects. Do not need to give the robotic arm a hint of the color. With the help of color sensor technology, DOBOT Conveyor Belt Kit will scan and identify them fast.

Interactive Foam Blocks

These colorful foam blocks are easy to grab, move, and pile. It is the most suitable material for getting a grip on the automation process.

Questions? We're here to help!

Our experts are ready to assist you in planning your path to automation success.
They can provide answers to all your Dobot-related queries, including:
√ Our Information on our product portfolio and pricing
√ Tailored solutions that suit your business needs
√ Distributor partnership policy and more…
Simply fill out the form at right or email us at sales@dobot-robots.com.
Conveyor Belt
Payload 500 g
Effective delivering distance 600 mm
Maximum speed 120 mm/s
Maximum acceleration 1100 mm/s²
Net Weight 4.2 kg
Weight (including packing) 5.34 kg
Dimension 700 mm × 215 mm × 60 mm
Distance measuring sensor unit
Measurable range 20 ~ 150 mm
Signal Analog Output
Input 4.5 - 5.5 V
Color recognizing sensor unit
Input 3 ~ 5 V

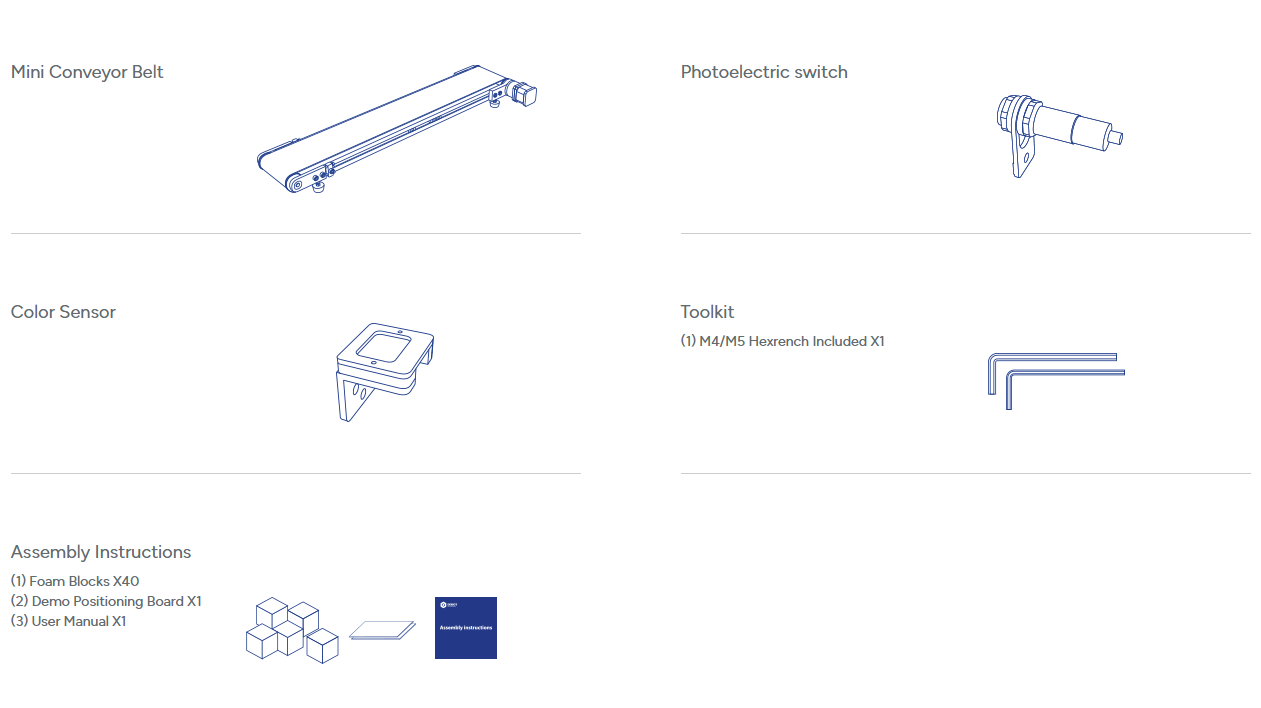

Shipping List
The package include: Mini conveyor belt, Photoelectric switch, Color sensor, Toolkit and Attachment. We don't cover the customs tax

What to do if the Magician encounters obstacles and misses some steps when it is running and results in error?

Reset the robot by pressing the Home button and continue the operation...

Learn more

What to do when 2 programs are running, the block is at the photoelectric sensor but the robot does not execute picking action?

Open Blockly and run the test program below to check whether...

Learn more

What to do if the robotic arm stops above the color sensor and places blocks on it during a sorting process?

Take a close look at the color of the indicator light...

Learn more

What to do if the color sensor doesn't work or it can only identify one color?

Check the versions of the firmware and DobotStudio to see...

Learn more

* The above data is the test results obtained by Dobot Laboratory under controlled experimental conditions, which may have slight differences from those in actual application scenarios.
